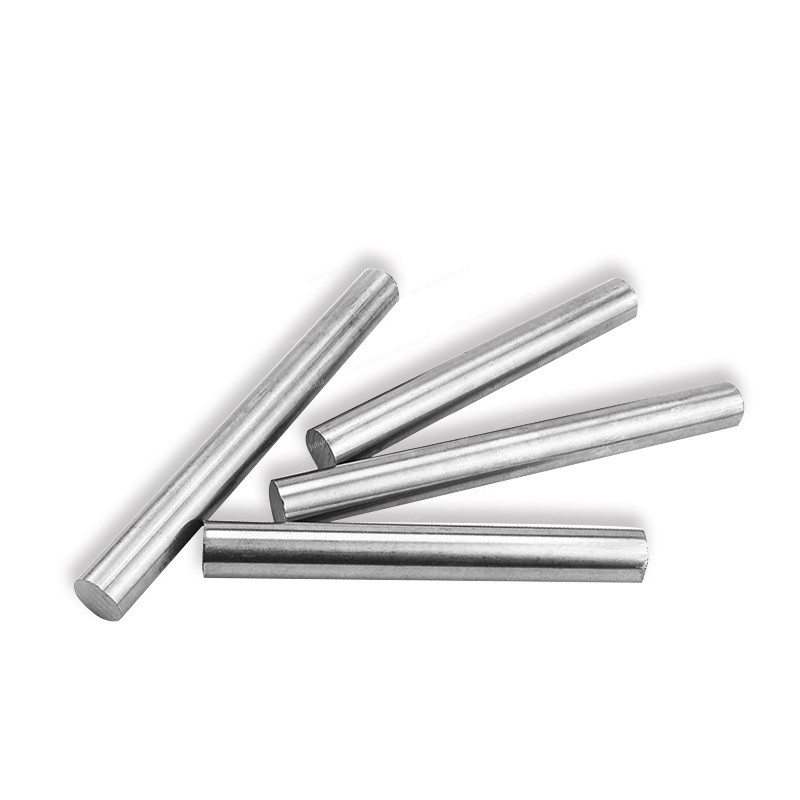

904L Stainless Steel Bar
904L stainless steel is a stainless steel material with good corrosion resistance, strength and mechanical properties. Given its excellent tolerance to harsh environments, 904L stainless steel bars are commonly used as manufacturing parts in fields including petroleum, chemical industry, and marine engineering.
Big fire special steel, high strength steel plate, steel industry supply and demand, steel suppliers
904L Stainless Steel Bar Description
Grade 904L is an unstable low carbon high alloy austenitic stainless steel. The addition of copper to this grade greatly increases its resistance to strong reducing acids, especially sulfuric acid. It is also highly resistant to chloride attack, including pitting/crevice corrosion and stress corrosion cracking.
Product Parameters
Product Name 904L Stainless Steel Bar Type Steel Bar Outer Diameter Round Bar 4mm-500mm Hexagon Bar 18mm-57mm (11/16″ to 2-3/4″) Square Bar 18mm-47mm (11/16″ to 1-3/4″) Flat Steel 1/2 "to 10", Thickness: 2mm-150mm, Can provide customized Length 1-6 meters, Length can be customized Standard ASTM, AISI, JIS, GB, DIN, EN, etc. Surface Black, Bright Polished, Rough Turning, Mattness Surface Treatment, No. 4. BA, etc. Scope of Application Stainless steel bars are used in a variety of industries such as shipbuilding, Defense, Automotive, Textiles, Paper and pulp, Manufacturing, Cement, Heavy earthmoving equipment and construction, etc.
Chemical Composition
C Si Mn Cr Ni Mo S P ≤ 0.02 ≤1.0 ≤ 2.0 19.0～23.0 23.0～28.0 4.0～5.0 ≤ 0.035 ≤ 0.045
Mechanical Properties
Tensile Strength Kb (MPa) Yield Strength σ0.2 (MPa) Elongation D5 (%) Hardness ≥490 ≥220 ≥35 ≤ 90HRB
Physical Performance
Density(g/cm³) Modulus of Elasticity(Gpa) Coefficient of Thermal Expansion(10-6/°C) Coefficient of Thermal Conductivity(W/m*K) Resistivity(ΜΩ. cm) 8.0 195 15.5 12.0 94
