Oriented Silicon Steel CRGO
Oriented Silicon Steel CRGO
Cold Rolled Ordinary Oriented Silicon Steel

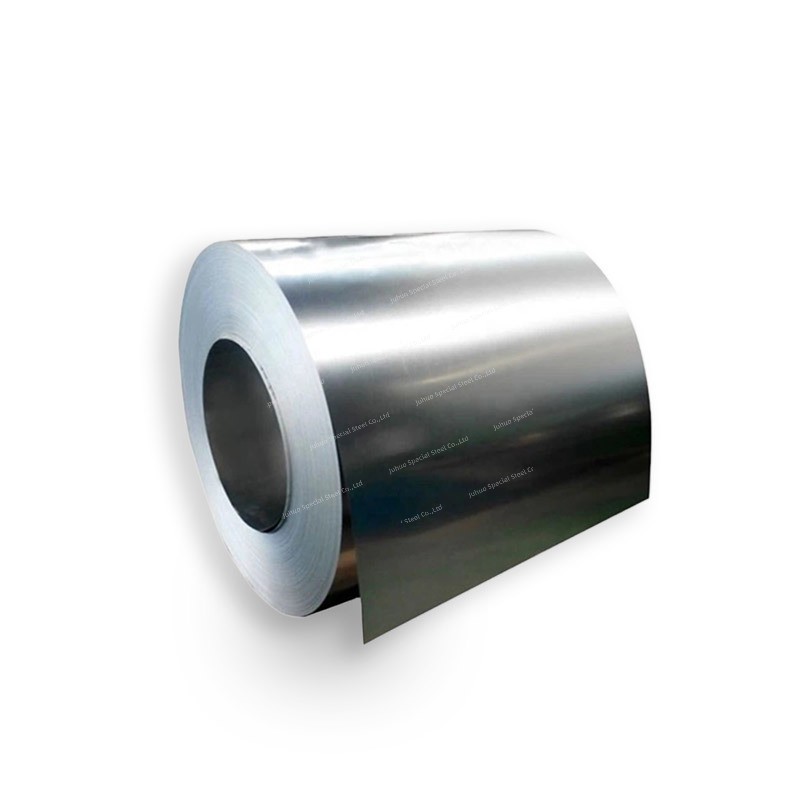

Oriented silicon steel, also known as cold-rolled transformer steel, is an important ferrosilicon alloy used in transformer (core) manufacturing industry. The most widely used oriented silicon steel is supplied in the form of a coil, and its surface is coated with an insulating layer to generate tensile stress in the base steel strip, thus further reducing the iron loss value. The cold-rolled strip has a smooth surface, good punching performance and high core filling factor.
Big fire special steel, high strength steel plate, steel industry supply and demand, steel suppliers
Cold Rolled Ordinary Oriented Silicon Steel Description
Oriented silicon steel, also known as cold-rolled transformer steel, is an important ferrosilicon alloy used in transformer (core) manufacturing industry. The most widely used oriented silicon steel is supplied in the form of a coil, and its surface is coated with an insulating layer to generate tensile stress in the base steel strip, thus further reducing the iron loss value. The cold-rolled strip has a smooth surface, good punching performance and high core filling factor.
Product Parameters
| Category |
Silicon Content/% |
Nominal Thickness/Mm |
Lord To Use Way |
||
|
Hot Rolled Silicon Steel (No Orientation) |
Hot rolled low silicon steel(Motor Steel) |
1.0~2.5 |
0.5 |
Household motors and micromotors |
|
|
Hot rolled high silicon steel(Transformer steel) |
3.0~4.5 |
0.35,0.50 |
Transformer |
||
|
Cold Rolled Electrical Steel |
Cold rolled non-oriented electrical steel(Motor Steel) |
Low carbon electrical steel |
≤ 0.5 |
0.50,0.65 |
Small transformers and ballasts for household motors, micromotors |
|
Silicon steel |
>0.5~3.5 |
0.35,0.50 |
Medium and large motors, generators and transformers |
||
|
Cold rolled grain oriented silicon steel(Transformer steel) |
Ordinary oriented silicon steel |
2.9~3.3 |
0.18,0.23,0.27 |
Large, medium and small transformers and ballasts |
|
|
High magnetic induction oriented silicon steel |
|||||
|
Special Purpose Silicon Steel |
Cold rolled grain oriented silicon steel strip |
2.9~3.3 |
0.03,0.05,0.10 |
Pulse transformer, magnetic amplifier, high frequency transformer and electric welding machine |
|
|
Cold rolled non-oriented silicon steel strip |
3.0 |
0.15,0.20 |
High-frequency motors and generators |
||
|
Cold rolled non-oriented silicon steel for magnetic switch |
3.0 |
0.70 |
Relays and magnetic switches |
||
|
Cold rolled high silicon steel |
6.5 |
0.1~0.5 |
High-frequency motors, transformers and magnetic shielding |
||
