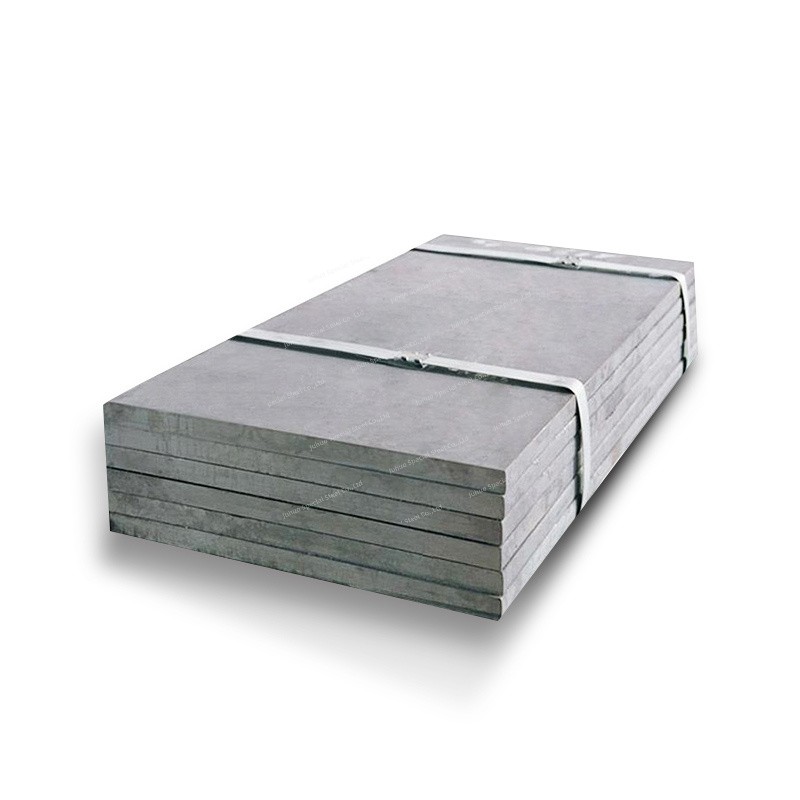

A515 Pressure Vessel Steel Plate
ASTM A515 is the same as ASME SA-515 and is the standard specification for welding carbon steel pressure vessel plates for high temperature service in boilers and other pressure vessels.
Big fire special steel, high strength steel plate, steel industry supply and demand, steel suppliers
A515 Pressure Vessel Steel Plate Description
ASTM A515 is the same as ASME SA-515 and is the standard specification for welding carbon steel pressure vessel plates for high temperature service in boilers and other pressure vessels. A515/SA-515 plate can be divided into 3 grades according to its minimum tensile strength: grade 60, grade 65 and grade 70.
Product Parameters
Product Name A515 Pressure Vessel Steel Plate Production Process Hot Rolling, Cold Rolling Material Standards AISI, ASTM, ASME, DIN, BS, EN, ISO, JIS, GOST, SAE, etc. Width 100mm-3000mm Length 1m-12m, or Customized Size Thickness 0.1mm-400mm Delivery Conditions Rolling, Annealing, Quenching, Tempered or Standard Surface Process Ordinary, Wire Drawing, Laminated Film
Chemical Composition
A515 C Mn≥ Si P S Grade60 0.24-0.31 0.98 0.13-0.45 0.035 0.035 Grade65 0.28-0.33 0.98 0.13-0.45 0.035 0.035 Grade70 0.31-0.35 1.3 0.13-0.45 0.035 0.035
Mechanical Properties
A515 Tensile Strength(MPa) Yield Strength(MPa) Elongation Rate And 2 And (50mm) min. Impact Test Temperature(°C) Grade60 415-550 220 25 -20, 40, -60 Grade65 450-585 240 23 -20, 40, -60 Grade70 485-620 260 21 -20, 40, -60
Physical Performance
Physical Performance Metric Imperial Density 7.80g/cc 0.282 lb/in³
Scope of Application
ASTM A515 boiler vessel plate is mainly used for medium and high temperature welding boiler and other pressure vessel equipment.
Equivalent Material
ASTM A515 National Standard GB Japanese Standard JIS German Standard DIN Legal Standard AFNOR Conspire UNI English Standard BS Level 60 GB713 20g JIS G3103 SB410 DIN 1715 1.0425 A48 CP, AP, FP Fe 460-2-KW Gr 360, 400 Level 65 GB713 22g JIS G3103 SB450 DIN 1715 1.0435 A48 CP, AP, FP Fe 460-2-KW Gr 360, 400 Level 70 - JIS G3103 SB480 DIN 1715 1.0844 A48 CP, AP, FP Fe 460-2-KW Gr 360, 400
What is your working time?
In general, our online service time is Beijing time: 8:00-22:00, after 22:00, we will reply to your inquiry during the next working day.
How to pack the products?
The inner layer has a waterproof paper outer layer with iron packaging and is fixed with a fumigation wooden pallet. It can effectively protect products from corrosion during ocean transportation.
Can you send samples?
Of course, we can send samples to all parts of the world, our samples are free, but customers need to bear the courier costs.
What product information do I need to provide?
You need to provide the grade, width, thickness, coating and the number of tons you need to purchase.
What are the shipping ports?
Under normal circumstances, we ship from Shanghai, Tianjin, Qingdao, Ningbo ports, you can choose other ports according to your needs.
About product prices?
Prices vary from period to period due to cyclical changes in the price of raw materials.
What are the certifications for your products?
We have ISO 9001, SGS, EWC and other certifications.
How long does your delivery time take?
In general, our delivery time is within 30-45 days, and may be delayed if the demand is extremely large or special circumstances occur.
