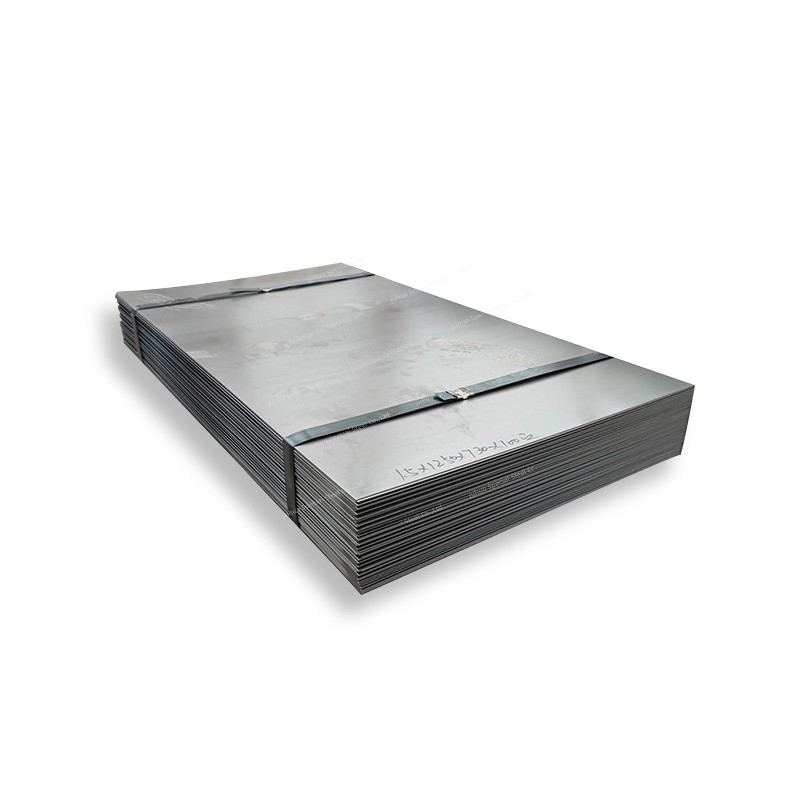

A204 Pressure Vessel Steel Plate
ASTM A204 boiler vessel plate is molybdenum alloy steel plate, mainly suitable for welding boilers and high temperature pressure vessels.
Big fire special steel, high strength steel plate, steel industry supply and demand, steel suppliers
A204 Pressure Vessel Steel Plate Description
ASTM A204 boiler vessel plate is molybdenum alloy steel plate, mainly suitable for welding boilers and high temperature pressure vessels. According to the molybdenum content, ASTM A204 boiler container plate is divided into 3 grades: A, B, C. The thickness of ASTM A204 boiler vessel plates is limited only by the ability of the chemical composition to meet the specified mechanical property requirements.
Product Parameters
Product Name A204 Pressure Vessel Steel Plate Production Process Hot Rolling, Cold Rolling Material Standards AISI, ASTM, ASME, DIN, BS, EN, ISO, JIS, GOST, SAE, etc. Width 100mm-3000mm Length 1m-12m, or Customized Size Thickness 0.1mm-400mm Delivery Conditions Rolling, Annealing, Quenching, Tempered or Standard Surface Process Ordinary, Wire Drawing, Laminated Film
Chemical Composition
A204 Upper limit of Chemical Element Content (%) C Si Mn P S Mo Class A 0.18-0.25 0.13-0.45 0.90-0.98 0.035 0.035 0.45-0.60 Class B 0.20-0.27 0.13-0.45 0.90-0.98 0.035 0.035 0.45-0.60 Class C 0.23-0.28 0.13-0.45 0.90-0.98 0.035 0.035 0.45-0.60
Mechanical Properties
A204 Tensile Strength kis[MPa] Yield Strength kis[MPa] Elongation Gauge length 8in.[200mm],% Elongation Gauge length 2in.[50mm],% GradeA 70-90 [485-620] 37 [255] 19 23 GradeB 75-95 [515-655] 40 [275] 17 21 GradeC 75-95 [515-655] 43 [295] 16 20
Physical Performance
Physical Performance Metric Imperial Density 7.80g/cc 0.282 lb/in³
Scope of Application
ASTM A204 boiler vessel plate is widely used in petroleum, chemical industry, power station, boiler and other industries, used in the manufacture of reactors, heat exchangers, separators, spherical tanks, liquefied gas, nuclear reactor pressure vessels, boiler drum steam, liquefied petroleum gas, hydropower stations, high pressure pipelines, etc.
What is your working time?
In general, our online service time is Beijing time: 8:00-22:00, after 22:00, we will reply to your inquiry during the next working day.
How to pack the products?
The inner layer has a waterproof paper outer layer with iron packaging and is fixed with a fumigation wooden pallet. It can effectively protect products from corrosion during ocean transportation.
Can you send samples?
Of course, we can send samples to all parts of the world, our samples are free, but customers need to bear the courier costs.
What product information do I need to provide?
You need to provide the grade, width, thickness, coating and the number of tons you need to purchase.
What are the shipping ports?
Under normal circumstances, we ship from Shanghai, Tianjin, Qingdao, Ningbo ports, you can choose other ports according to your needs.
About product prices?
Prices vary from period to period due to cyclical changes in the price of raw materials.
What are the certifications for your products?
We have ISO 9001, SGS, EWC and other certifications.
How long does your delivery time take?
In general, our delivery time is within 30-45 days, and may be delayed if the demand is extremely large or special circumstances occur.
