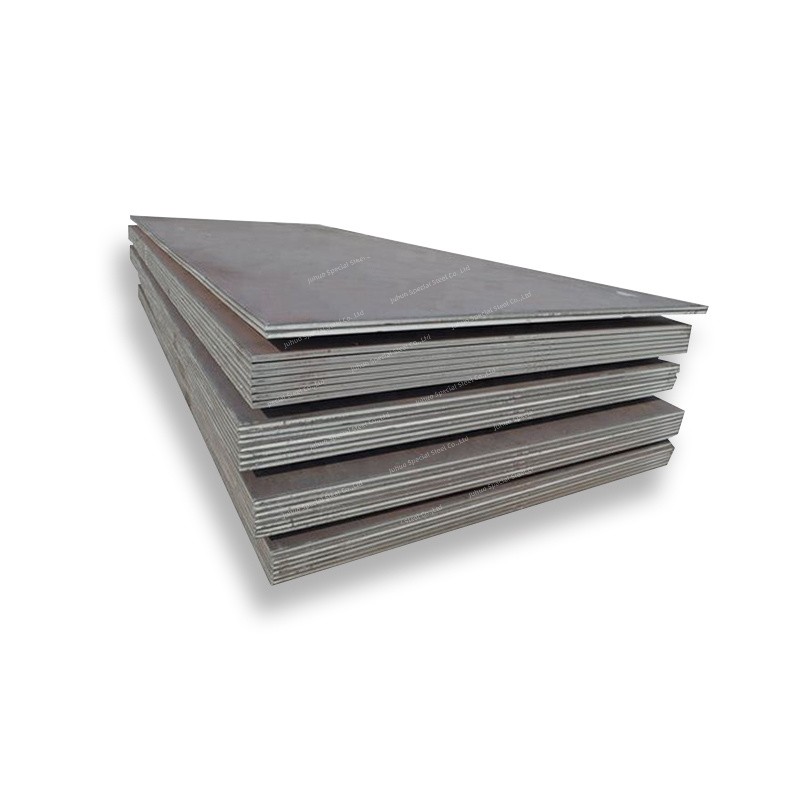

A573/A573M Carbon Steel Plate
ASTM A573/A573M grades include 58, 65 and 70. Steel plates are suitable for structural carbon-manganese-silicon steel plates with three tensile strength ranges. ASTM A573/A573M steel plates are mainly used to improve notch toughness at room temperature.
Big fire special steel, high strength steel plate, steel industry supply and demand, steel suppliers
A573/A573M Carbon Steel Plate Description
ASTM A573/A573M grades are divided into 58, 65 and 70. Steel plates are suitable for structural carbon-manganese-silicon steel plates with three tensile strength ranges. ASTM A573/A573M steel plates are mainly used for important purposes of improving notch toughness at room temperature.
Product Parameters
Product Name A573/A573M Carbon Steel Plate Production Process Hot Rolling, Cold Rolling Material Standards AISI, ASTM, ASME, DIN, BS, EN, ISO, JIS, GOST, SAE, etc. Width 100mm-3000mm Length 1m-12m, or Customized Size Thickness 0.1mm-400mm Delivery Conditions Rolling, Annealing, Quenching, Tempered or Standard Surface Process Ordinary, Wire Drawing, Laminated Film
Chemical Composition
A573 C max Mn P max S max Si Grade58 0.23 0.60-0.90 0.035 0.04 0.10-0.35 Grade65 0.24-0.26 0.85-1.20 0.035 0.04 0.15-0.40 Grade70 0.27-0.28 0.85-1.20 0.035 0.04 0.15-0.40
Mechanical Properties
A573 Tensile Strength Yield Strength Elongation % Grade58 58 400-490 Mpa 220 Mpa 21 Grade65 65 450-530 Mpa 240 Mpa 20 Grade70 70 485-620 Mpa 290 Mpa 28
Physical Performance
Physical Performance Metric Imperial Density 7.85g/cm3 0.282 lb/in³
Scope of Application
ASTM A573 grade steel plate for welded bridge structures.
