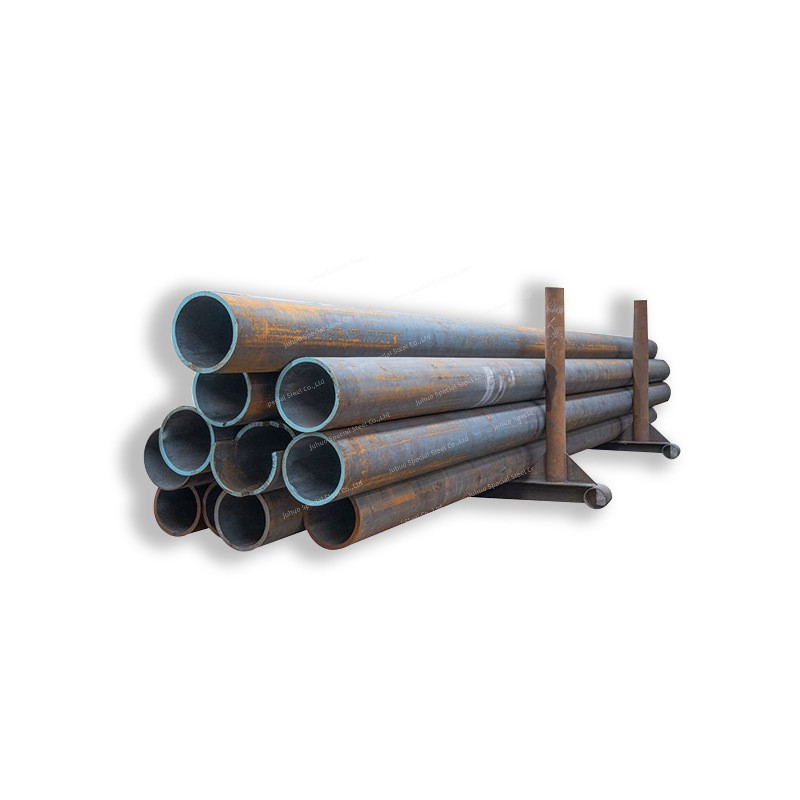

A213 Seamless Carbon Steel Pipe
A213 is a ferrite and austenitic alloy seamless steel pipe for boilers, superheaters and heat exchangers. Its products should comply with TSG D7002 pressure piping component type test rules.
Big fire special steel, high strength steel plate, steel industry supply and demand, steel suppliers
A213 Seamless Carbon Steel Pipe Description
ASTM A213 designates grades T5, TP304, etc. Grades with the letter H have a higher creep rupture strength than grades without H. ASME SA213 seamless pipe is chrome molybdenum alloy pipe. ASTM A192 is the same as ASME SA-192 and is the standard specification covering seamless carbon steel boiler and superheater tubes of minimum wall thickness for high pressure service.
Product Parameters
Product Name A213 Seamless Carbon Steel Pipe Standard EN/DIN/JIS/ASTM/BS/ASME/AISI etc. Outer Diameter Seamless: 1/4"-36" Welding: 21.3mm-3620mm Round Tube: 1/2"-10" Square Tube/Rectangular Tube: 15x15mm-400x600mm Wall Thickness Seamless: 1.25mm-50mm Welding: 1.65mm-65mm Length 3-12 meters, Support customization Surface Process Bright, Polished, Black Other Services Machining(cnc), Centerless Grinding(cg), Heat Treatment, Annealing, Pickling, Polishing, Rolling, Forging, Cutting, Bending, Small Machining, etc.
Chemical Composition
A213 C Si Mn P,S Max Cr Mo V Al Max Nb T2 0.10~0.20 0.10~0.30 0.30~0.61 0.025 0.50~0.81 0.44~0.65 - - - T11 0.05~0.15 0.50~1.00 0.30~0.60 0.025 1.00~1.50 0.44~0.65 - - - T12 0.05~0.15 Max 0.5 0.30~0.61 0.025 0.80~1.25 0.44~0.65 - - - T22 0.05~0.15 Max 0.5 0.30~0.60 0.025 1.90~2.60 0.87~1.13 - - - T91 0.07~0.14 0.20~0.50 0.30~0.60 0.02 8.0~9.5 0.85~1.05 0.18~0.25 0.015 0.06~0.10 T92 0.07~0.13 Max 0.5 0.30~0.60 0.02 8.5~9.5 0.30~0.60 0.15~0.25 0.015 0.04~0.09
Mechanical Properties
A213 Tensile Strength Yield Strength Elongation Hardness T2 ≥ 415MPa ≥ 205MPa ≥30% 163HBW(85HRB) T11 ≥ 415MPa ≥ 205MPa ≥30% 163HBW(85HRB) T12 ≥ 415MPa ≥ 220MPa ≥30% 163HBW(85HRB) T22 ≥ 415MPa ≥ 205MPa ≥30% 163HBW(85HRB) T91 ≥ 585MPa ≥ 415MPa ≥ 20% 250HBW(25HRB) T92 ≥ 620MPa ≥ 440MPa ≥ 20% 250HBW(25HRB)
Scope of Application
Seamless ferritic and austenitic steel boilers, boiler tubes and heat exchanger tubes for high temperature service.
