Carbon Steel Coil
Carbon Steel Coil

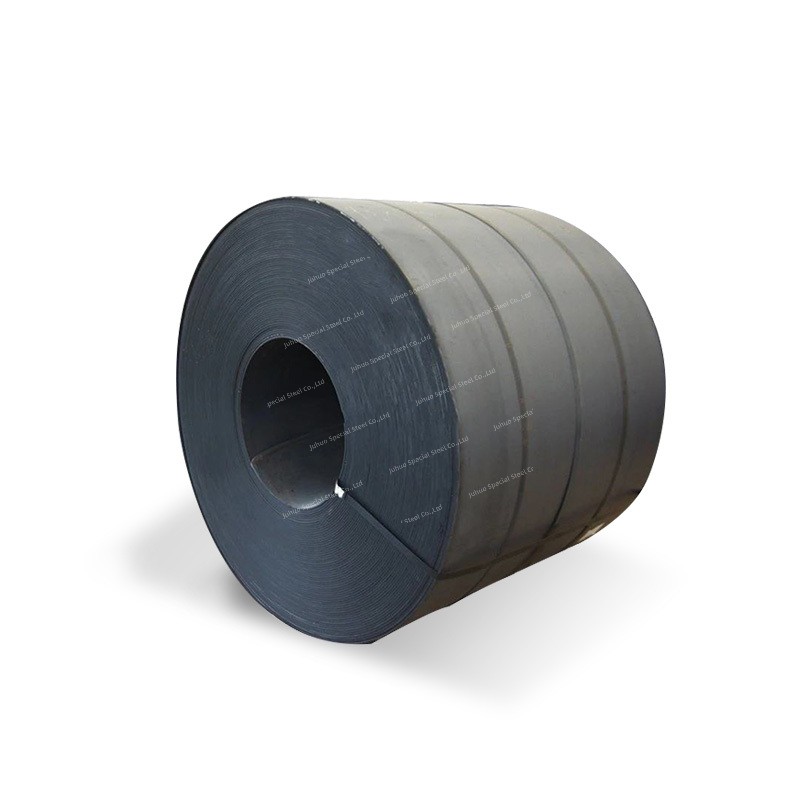

JIS G3103 P296GH/P355GH/P235GH Pressure Vessel Carbon Steel Coil
JIS G3103 boiler vessel coil is a carbon steel and molybdenum alloy steel hot rolled coil for Chinese and high temperature boilers and pressure vessels. The main grades of JIS G3103 boiler vessel steel are: SB410, SB450, SB480,SB450M and SB480M.
Big fire special steel, high strength steel plate, steel industry supply and demand, steel suppliers
JIS G3103 P296GH/P355GH/P235GH Pressure Vessel Carbon Steel Coil Description
JIS G3103 boiler vessel coil is a carbon steel and molybdenum alloy steel hot rolled coil for Chinese and high temperature boilers and pressure vessels. The main grades of JIS G3103 boiler vessel steel are: SB410, SB450, SB480,SB450M and SB480M.
Product Parameters
Product Name JIS G3103 P296GH/P355GH/P235GH Pressure Vessel Carbon Steel Coil Production Process Hot Rolling, Cold Rolling Material Standards AISI, ASTM, ASME, DIN, BS, EN, ISO, JIS, GOST, SAE, etc. Width 45mm-2200mm Length Custom Size Thickness Hot Rolling: 2.75mm-100mm Delivery Conditions Rolling, Annealing, Quenching, Tempered or Standard Surface Process Ordinary, Wire Drawing, Laminated Film
Cold Rolling: 0.2mm-3mm
Chemical Composition
Brand C Si Mn P S Mo SB410 0.24-0.30 0.15-0.40 0.90 0.030 0.030 - SB450 0.33 0.45 0.98 0.030 0.030 - SB480 0.35 0.45 1.30 0.030 0.030 - SB450M 0.25 0.45 0.98 0.030 0.030 0.45-0.60 SB480M 0.27 0.45 0.98 0.030 0.030 0.45-0.60
Mechanical Properties
Brand Tensile Strength(MPa) Yield Strength(MPa) Elongation, Gage2 in. [50mm], % SB410 410-550 225 21 SB450M 450-590 255 19 SB450 450-590 245 19 SB480 480-620 265 17 SB480M 480-620 275 17
Scope of Application
JIS G3103 boiler vessel plate is widely used in petrochemical, manufacturing and other industries of boiler, pressure vessel manufacturing.
Equivalent Material
Brand European Standard German Standard Japanese Standard American Standard SB450 P296GH A St45, 17Mn4, StE315 SPV 315 A 515 gr.55 SB450M P296GH A St45, 17Mn4, StE315 SPV 315 A 515 gr.55 SB480 P355GH A St52, 19Mn8, StE355 SPV 355 A537 CL1 SB480M P355GH A St52, 19Mn8, StE355 SPV 355 A537 CL1 SB410 P235GH A St35, HI, StE255 SPV 235 A285 Gr.A/B/C
What is your working time?
In general, our online service time is Beijing time: 8:00-22:00, after 22:00, we will reply to your inquiry during the next working day.
How to pack the products?
The inner layer has a waterproof paper outer layer with iron packaging and is fixed with a fumigation wooden pallet. It can effectively protect products from corrosion during ocean transportation.
Can you send samples?
Of course, we can send samples to all parts of the world, our samples are free, but customers need to bear the courier costs.
What product information do I need to provide?
You need to provide the grade, width, thickness, coating and the number of tons you need to purchase.
What are the shipping ports?
Under normal circumstances, we ship from Shanghai, Tianjin, Qingdao, Ningbo ports, you can choose other ports according to your needs.
About product prices?
Prices vary from period to period due to cyclical changes in the price of raw materials.
What are the certifications for your products?
We have ISO 9001, SGS, EWC and other certifications.
How long does your delivery time take?
In general, our delivery time is within 30-45 days, and may be delayed if the demand is extremely large or special circumstances occur.
