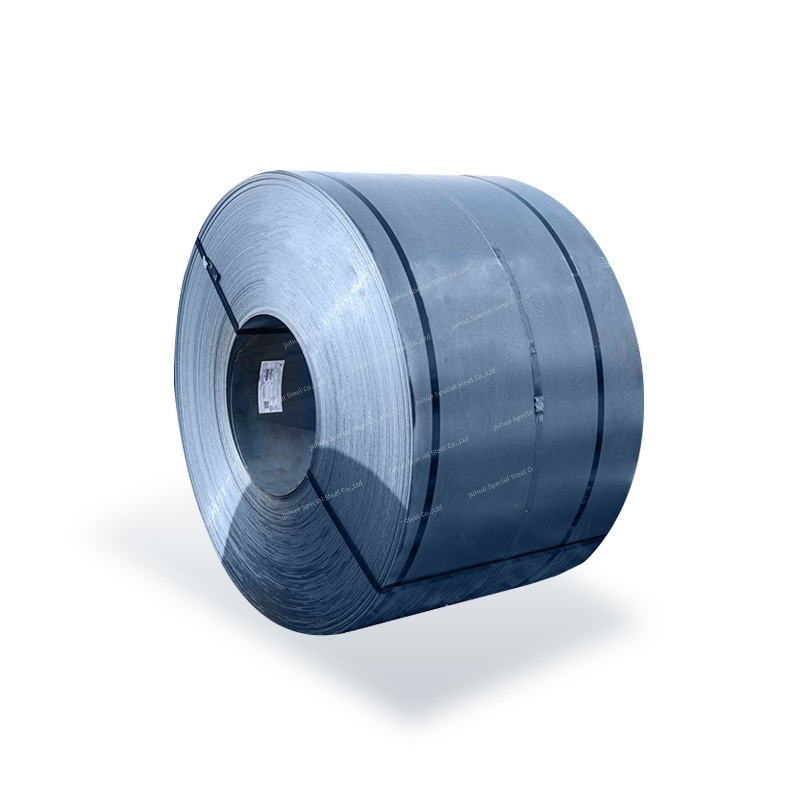

A537 Pressure Vessel Carbon Steel Coil
A537 pressure vessel steel coil is made of heat treated carbon manganese silicon steel that is used in pressure vessel fabrication. There are 3 grades, which are Grade 1, Grade 2, and Grade 3.
Big fire special steel, high strength steel plate, steel industry supply and demand, steel suppliers
A537 Pressure Vessel Carbon Steel Coil Description
ASTM A537 Boiler vessel coils are heat treated carbon manganese silicon steel coils used in pressure vessel fabrication. ASTM A537 Boiler Vessel Rolls are available in three grades, Grade 1, Grade 2, and Grade 3.
Product Parameters
Product Name A537 Pressure Vessel Carbon Steel Coil Production Process Hot Rolling, Cold Rolling Material Standards AISI, ASTM, ASME, DIN, BS, EN, ISO, JIS, GOST, SAE, etc. Width 45mm-2200mm Length Custom Size Thickness Hot Rolling: 2.75mm-100mm Delivery Conditions Rolling, Annealing, Quenching, Tempered or Standard Surface Process Ordinary, Wire Drawing, Laminated Film
Cold Rolling: 0.2mm-3mm
Chemical Composition
Standard Thickness(mm) C Si Mn P S Cu Ni Cr Mo A537 ≤40mm 0.24 0.15-0.50 0.70-1.35 0.035 0.035 0.35 0.25 0.25 0.08 >40mm 1.00-1.60
Mechanical Properties
A537 Thickness mm Yield Mpa Tensile Strength Mpa Elongation % Level 1 ≤ 65 345 485-620 22 65-100 310 450-585 - 100-150 - - 18 Level 2 ≤ 65 415 550-690 22 65-100 380 515-655 20 100-150 315 485-620 - Level 3 ≤ 65 380 550-690 22 66-100 345 515-655 20 101-150 275 485-620 -
Physical Performance
Physical Performance Metric Imperial Density 7.80g/cc 0.282 lb/in³
Scope of Application
ASTM A537 boiler vessel plate is a steel plate used when the yield strength and tensile strength of ASTM A516 cannot meet the requirements of pressure equipment such as boilers and pressure vessels in the oil, natural gas, and petroleum industries. ASTM A537 boiler vessel plate has good notch toughness, which is widely used in API 650 and API 620 storage tanks, medium and low temperature pressure vessels, etc.
What is your working time?
In general, our online service time is Beijing time: 8:00-22:00, after 22:00, we will reply to your inquiry during the next working day.
How to pack the products?
The inner layer has a waterproof paper outer layer with iron packaging and is fixed with a fumigation wooden pallet. It can effectively protect products from corrosion during ocean transportation.
Can you send samples?
Of course, we can send samples to all parts of the world, our samples are free, but customers need to bear the courier costs.
What product information do I need to provide?
You need to provide the grade, width, thickness, coating and the number of tons you need to purchase.
What are the shipping ports?
Under normal circumstances, we ship from Shanghai, Tianjin, Qingdao, Ningbo ports, you can choose other ports according to your needs.
About product prices?
Prices vary from period to period due to cyclical changes in the price of raw materials.
What are the certifications for your products?
We have ISO 9001, SGS, EWC and other certifications.
How long does your delivery time take?
In general, our delivery time is within 30-45 days, and may be delayed if the demand is extremely large or special circumstances occur.
