Carbon Steel Coil
Carbon Steel Coil

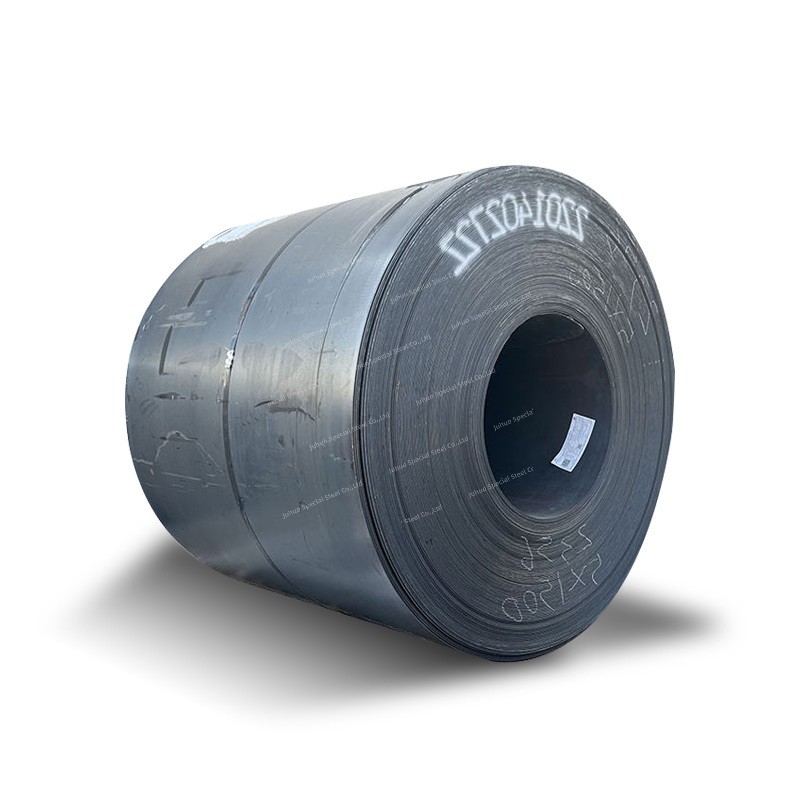

A202 Pressure Vessel Carbon Steel Coil
ASTM A202 pressure vessel steel coil is mainly used for welding boilers and other pressure vessels. There are two grades of ASTM A202 boiler vessel steel: Grade A and Grade B.
Big fire special steel, high strength steel plate, steel industry supply and demand, steel suppliers
A202 Pressure Vessel Carbon Steel Coil Description
ASTM A202 grade is divided into: A, B, boiler vessel coil is mainly used for welding boilers and other pressure vessels. There are two grades of ASTM A202 boiler vessel steel: Grade A and Grade B. ASTM A202 Boiler vessel coils are limited to a thickness of 2in, I .e. 50mm.
Product Parameters
Product Name A202 Pressure Vessel Carbon Steel Coil Production Process Hot Rolling, Cold Rolling Material Standards AISI, ASTM, ASME, DIN, BS, EN, ISO, JIS, GOST, SAE, etc. Width 45mm-2200mm Length Custom Size Thickness Hot Rolling: 2.75mm-100mm Delivery Conditions Rolling, Annealing, Quenching, Tempered or Standard Surface Process Ordinary, Wire Drawing, Laminated Film
Cold Rolling: 0.2mm-3mm
Chemical Composition
A202 Chemical Element Content(Upper Limit%) C Si Mn P S Cr GradeA 0.17 0.54-0.96 0.97-1.52 0.035 0.035 0.31-0.64 GradeB 0.25 0.54-0.96 0.97-1.52 0.035 0.035 0.31-0.64
Mechanical Properties
A202 Tensile Strength kis[MPa] Yield Strength kis[MPa] Elongation Gauge Length 8in.[200mm],% Elongation Gauge Length 2in.[50mm],% GradeA 75-95 [515-655] 45 [310] ≧ 16 ≧ 19 GradeB 85-110 [585-760] 47 [325] ≧ 15 ≧ 18
Physical Performance
Physical Performance Metric Imperial Density 7.80g/cc 0.282 lb/in³
Scope of Application
ASTM A202 boiler vessel plate is widely used in oil and gas engineering projects, for the manufacture of pressure vessels, boilers, storage tanks and heat exchangers and other equipment.
