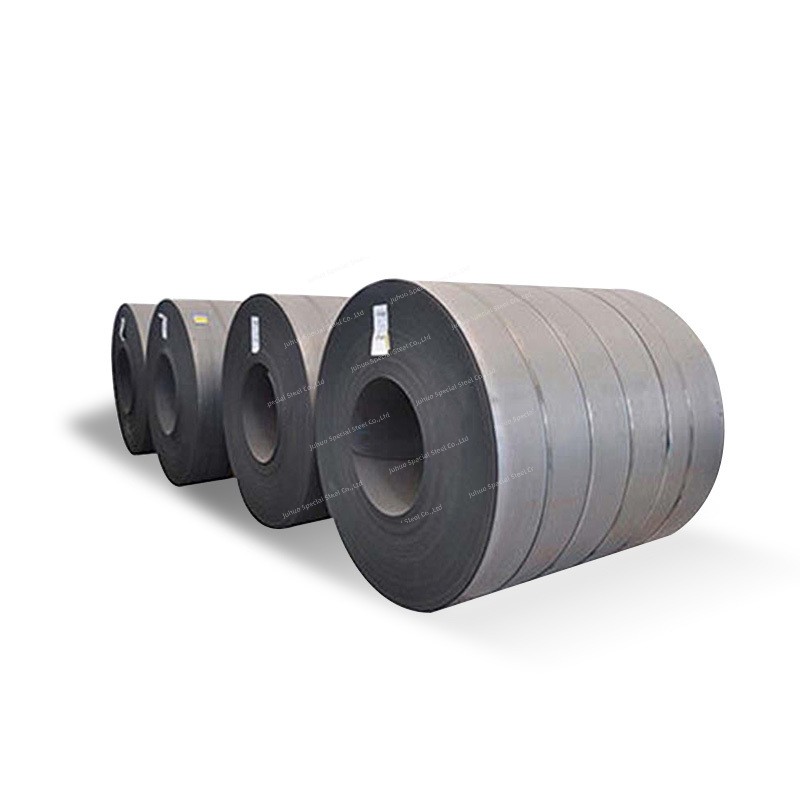

EN10025-2 S235/S275/S355 Carbon Steel Coil
EN10025-2 steel coil is a low-alloy high-strength structural steel, which is made of carbon structural steel by adding a small amount of alloying elements.
Big fire special steel, high strength steel plate, steel industry supply and demand, steel suppliers
EN10025-2 S235/S275/S355 Carbon Steel Coil Description
EN10025-2 steel coil is a low-alloy high-strength structural steel, which is made of carbon structural steel (Wc = 0.16%~ 0.2%) by adding a small amount of alloying elements. EN10025-2 steel coil has good welding performance, plasticity, toughness and processing technology, good corrosion resistance, high strength and low cold brittle critical transition temperature.
Product Parameters
Product Name EN10025-2 S235/S275/S355 Carbon Steel Coil Production Process Hot Rolling, Cold Rolling Material Standards AISI, ASTM, ASME, DIN, BS, EN, ISO, JIS, GOST, SAE, etc. Width 45mm-2200mm Length Custom Size Thickness Hot Rolling: 2.75mm-100mm Delivery Conditions Rolling, Annealing, Quenching, Tempered or Standard Surface Process Ordinary, Wire Drawing, Laminated Film
Cold Rolling: 0.2mm-3mm
Chemical Composition
Brand C Si max Mn max P max S max N max Cu max ≤ 16 16-40 >40 S235JR 0.17 0.17 0.20 - 1.40 0.035 0.035 0.012 0.55 S275JR 0.21 0.21 0.22 - 1.50 0.035 0.035 0.012 0.55 S275J0 0.18 0.18 0.18 - 1.50 0.030 0.030 0.012 0.55 S275J2 0.18 0.18 0.18 - 1.50 0.025 0.025 - 0.55 S355JR 0.24 0.24 0.24 0.55 1.60 0.035 0.035 0.012 0.55 S355J0 0.20 0.20 0.22 0.55 1.60 0.030 0.030 0.012 0.55 S355J2 0.20 0.20 0.22 0.55 1.60 0.025 0.025 - 0.55
Mechanical Properties
Thickness mm Tensile Strength ≤3 3-100 100-150 150-250 250-400 S235JR 360-510 360-510 350-500 340-490 - S275JR 430-580 410-560 400-540 380-540 - S275J0 430-580 410-560 400-540 380-540 - S275J2 430-580 410-560 400-540 380-540 - S355JR 510-680 470-630 450-600 450-600 - S355J0 510-680 470-630 450-600 450-600 - S355J2 510-680 470-630 450-600 450-600 450-600
Yield Strength ≤ 16 16-40 40-63 63-80 80-100 100-150 150-200 200-250 250-400 S235JR 235 225 215 215 215 195 185 175 - S275JR 275 265 255 245 235 225 215 205 - S275J0 275 265 255 245 235 225 215 205 - S275J2 275 265 255 245 235 225 215 205 195 S355JR 355 345 335 325 315 295 285 275 - S355J0 355 345 335 325 315 295 285 275 S355J2 355 345 335 325 315 295 285 275 265Thickness mm
Scope of Application
EN10025-2 steel plate structures are used in trucks, transmission towers, dump trucks, cranes, trailers, bulldozers, excavators, forestry machinery, etc.
Equivalent Material
European Standard American Standard S235 A283C S275 A570Gr40 S355 A572Gr50
