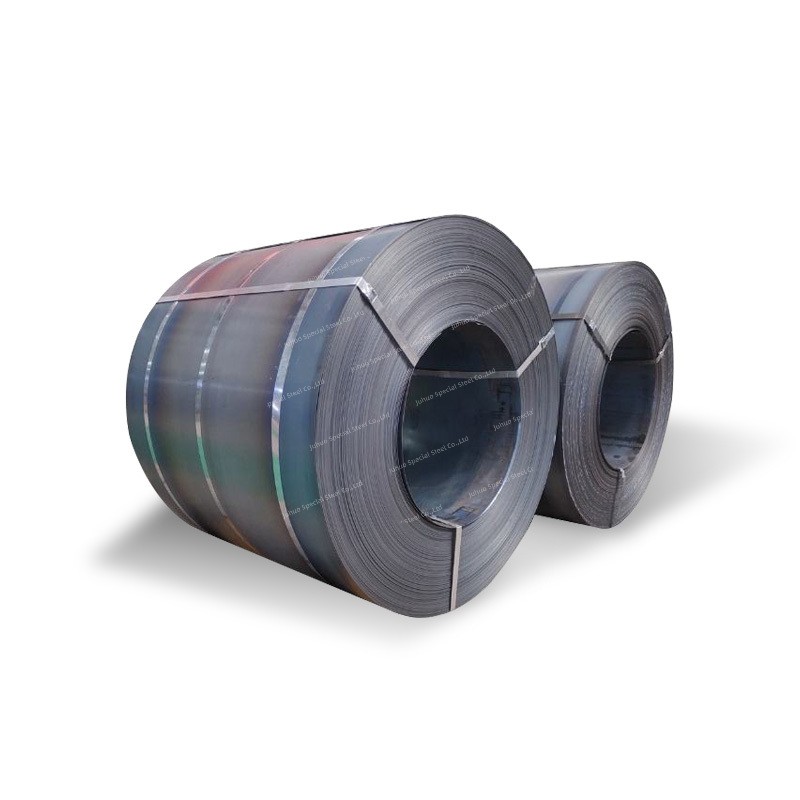

4135/4140/4142/6150 Alloy Coil EN10083-3
EN 10083-3 steel is an alloy steel used for quenching and tempering. This standard regulates the technical delivery conditions of alloy steels.
Big fire special steel, high strength steel plate, steel industry supply and demand, steel suppliers
4135/4140/4142/6150 Alloy Coil EN10083-3 Description
There are steel types 50CrMo4, 51CrV4, 20MnB5, 34CrMo4, 42CrMo4, and 27MnCrB5-2. EN 10083-3 steel coil has high strength, high toughness and good hardenability. This alloy requires high-temperature preheating before welding to relieve stress after welding. EN 10083-3 steel coils are used in the manufacture of tools that require good formability and high strength. It is usually chosen to manufacture large and important parts, such as heavy-duty mechanical shafts, turbine shaft blades, high-load transmission parts, fasteners, crankshafts, gears, and heavy-duty parts of electric motor structures, etc..
Product Parameters
Product Name | 4135/4140/4142/6150 Alloy Coil EN10083-3 |
Production Process | Hot Rolling, Cold Rolling |
Material Standards | AISI, ASTM, ASME, DIN, BS, EN, ISO, JIS, GOST, SAE, etc. |
Width | 45mm-2200mm |
Length | Custom Size |
Thickness | Hot Rolling: 2.75mm-100mm |
Delivery Conditions | Rolling, Annealing, Quenching, Tempered or Standard |
Surface Process | Ordinary, Wire Drawing, Laminated Film |
Chemical Composition
Brand | C | Si max | Mn | P max | S max | Cr | Mo | V |
34CrMo4 | 0.3-0.37 | 0.40 | 0.6-0.9 | 0.025 | 0.035 | 0.9-1.2 | 0.15-0.3 | - |
42CrMo4 | 0.38-0.45 | 0.40 | 0.6-0.9 | 0.025 | 0.035 | 0.9-1.2 | 0.15-0.3 | - |
50CrMo4 | 0.46-0.54 | 0.40 | 0.5-0.8 | 0.025 | 0.035 | 0.9-1.2 | 0.15-0.3 | - |
51CrV4 | 0.47-0.55 | 0.40 | 0.7-1.1 | 0.025 | 0.025 | 0.9-1.2 | - | 0.1-0.25 |
Mechanical Properties
Thickness mm | Re min. N/mm2 | Rm N/mm2 | A min % | From min % | KVb min J |
≤ 8 | 900 | 1000-1300 | 10 | 40 | - |
8-20 | 750 | 1000-1200 | 11 | 45 | 35 |
20-60 | 650 | 900-1100 | 12 | 50 | 35 |
60-100 | 550 | 800-950 | 13 | 50 | 35 |
100-160 | 500 | 750-900 | 14 | 55 | 35 |
Scope of Application
EN 10083-3 steel plates are used to manufacture tools that require good plasticity and high strength. It is usually selected to manufacture large parts and important parts, such as heavy mechanical shafts, turbine shaft blades, high loads of transmission parts, fasteners, crankshafts, gears, and heavy-duty parts of motor structures.
Equivalent Material
European Standard | American Standard | German Standard | Japanese Standard | National Standard | International Standards |
34CrMo4 | 4135 | 34CrMo4 | SCM435H | 35CrMo | 34CrMo4 |
42CrMo4 | 4140, 4142 | 42CrMo4 | SCM440H | 42CrMo | 42CrMo4 |
50CrMo4 | - | 50CrMo4 | - | 50CrMo | 50CrMo4 |
51CrV4 | 6150 | 50CrV4 | SUP10 | 50CrVA | 51CrV4 |
What is your working time?
In general, our online service time is Beijing time: 8:00-22:00, after 22:00, we will reply to your inquiry during the next working day.
How to pack the products?
The inner layer has a waterproof paper outer layer with iron packaging and is fixed with a fumigation wooden pallet. It can effectively protect products from corrosion during ocean transportation.
Can you send samples?
Of course, we can send samples to all parts of the world, our samples are free, but customers need to bear the courier costs.
What product information do I need to provide?
You need to provide the grade, width, thickness, coating and the number of tons you need to purchase.
What are the shipping ports?
Under normal circumstances, we ship from Shanghai, Tianjin, Qingdao, Ningbo ports, you can choose other ports according to your needs.
About product prices?
Prices vary from period to period due to cyclical changes in the price of raw materials.
What are the certifications for your products?
We have ISO 9001, SGS, EWC and other certifications.
How long does your delivery time take?
In general, our delivery time is within 30-45 days, and may be delayed if the demand is extremely large or special circumstances occur.
