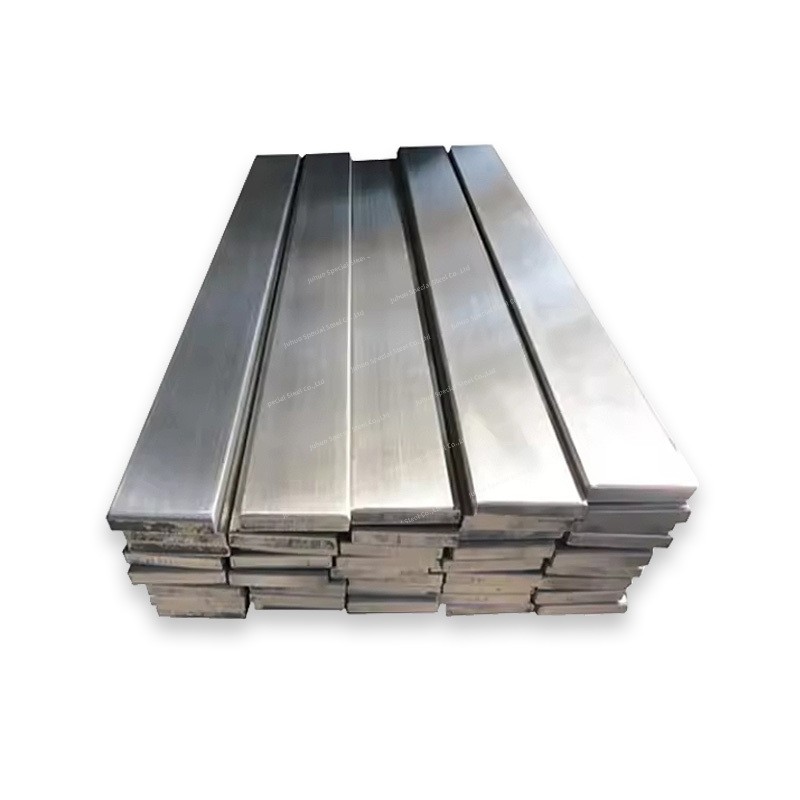

Steel Flat Bar
Flat bars are a flat, rectangular section with square edges varying in sizes. This cost-effective steel product is suitable for a wide variety of applications and is distributed into the construction, engineering, manufacturing, mining, grating, fabrication and many other industries.
Big fire special steel, high strength steel plate, steel industry supply and demand, steel suppliers
Steel Flat Bar Description
Flat bars are a flat, rectangular section with square edges varying in sizes. This cost-effective steel product is suitable for a wide variety of applications and is distributed into the construction, engineering, manufacturing, mining, grating, fabrication and many other industries. The flat bar's versatility is the main reason it is usable throughout various industries, along with the excellent strength and formability combination of steel.
Product Parameters
Product Name | Steel Flat Bar | |||
Standard | EN/DIN/JIS/ASTM/BS/ASME/AISI, etc. | |||
Flat Steel Common Specifications | 6.35x12.7mm, 6.35x25.4mm, 12.7x25.4mm | |||
Length | 1-6meters, Size Accept Custom | |||
Diameter(mm) | Hot Rolling Round Bar | 25-600 | Cold Rolling Square Bar | 6-50.8 |
Hot Rolling Square Bar | 21-54 | Cold Rolling Hexagon Bar | 9.5-65 | |
Cold Rolling Round bar | 6-101.6 | Forged Rebar | 200-1000 | |
Surface Process | Bright, Polished, Black | |||
Other Services | Machining(cnc), Centerless Grinding(cg), Heat Treatment, Annealing, Pickling, Polishing, Rolling, Forging, Cutting, Bending, Small Machining, etc. | |||
Flat Bars (Dimensions and Properties)
| Thickness | Mass in kg/m for widths in mm | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| mm | 20 | 25 | 30 | 40 | 45 | 50 | 60 | 65 | 70 | 80 | 90 |
| 5 | 0.785 | 0.981 | 1.18 | 1.57 | 1.77 | 1.96 | - | - | - | - | - |
| 6 | 0.942 | 1.18 | 1.41 | 1.88 | 2.12 | 2.36 | 2.83 | 3.06 | 3.30 | 3.77 | 4.24 |
| 8 | 1.26 | 1.57 | 1.88 | 2.51 | - | 3.14 | 3.77 | 4.08 | 4.40 | 5.02 | 5.65 |
| 10 | 1.57 | 1.96 | 2.36 | 3.14 | - | 3.93 | 4.71 | 5.10 | 5.50 | 6.28 | 7.07 |
| 12 | - | 2.36 | 2.83 | 3.77 | 4.24 | 4.71 | 5.65 | 6.12 | 6.59 | 7.54 | 8.48 |
| 16 | - | - | - | 5.02 | - | 6.28 | 7.54 | 8.16 | 8.79 | 10.0 | 11.3 |
| 20 | - | - | - | 6.28 | - | 7.85 | 9.42 | 10.2 | 11.0 | 12.6 | 14.1 |
| 25 | - | - | - | 7.85 | - | 9.81 | 11.8 | 12.8 | 13.7 | 15.7 | 17.7 |
| 30 | - | - | - | - | - | - | - | - | - | 18.8 | - |
| 40 | - | - | - | - | - | - | - | - | - | 25.1 | - |
| Thickness | Mass in kg/m for width in mm | |||||||
|---|---|---|---|---|---|---|---|---|
| mm | 100 | 110 | 130 | 150 | 180 | 200 | 250 | 300 |
| 6 | 5.18 | 4.71 | - | - | - | - | - | - |
| 8 | 6.28 | 6.91 | 8.16 | 9.42 | - | - | - | - |
| 10 | 7.85 | 8.64 | 10.2 | 11.8 | 14.1 | 15.7 | - | - |
| 12 | 9.42 | 10.4 | 12.2 | 14.1 | 17.0 | 18.8 | - | - |
| 16 | 12.6 | - | 16.3 | 18.8 | 22.6 | 25.1 | 31.4 | 37.7 |
| 20 | 15.7 | - | 20.4 | 23.6 | 28.3 | 31.4 | 39.2 | 47.1 |
| 25 | 19.6 | - | 25.5 | 29.4 | 35.3 | 39.2 | 49.1 | 58.9 |
| 30 | 23.6 | - | 31.6 | 35.3 | 42.4 | 47.1 | 58.9 | 70.6 |
| 40 | 31.4 | - | - | 47.1 | 56.5 | 62.8 | 78.5 | 94.2 |
| 45 | 39.2 | - | - | - | - | - | - | 106 |
| 50 | - | - | - | - | - | - | - | 118 |
Scope of Application
Home appliances
Steel is used in hundreds of appliances in the home. Fridges, freezers, microwaves, extractor hoods and washing machines all use mild steel. The metal is given layers of coatings and its surface is treated to make the products safe, reliable and long-lasting. It also helps protect against wear and tear, and corrosion. Flat steel bars are also used in garage doors, latches and heaters, as well as many other elements of residential construction.
Building frames
Steel flat bars have a major role to play in frame construction. The parts can be pre-fabricated in the factory, while girders and angles can be bought ready-made, saving time spent building. Steel flat bars function in the same way as hollow steel sections or may be used in many different types of building installations together with hollow steel bars. Steel flat bars are so versatile that they can be made to take any shape and clad with any materials.
Structures within the energy industry
For decades, steel beams and bars have provided the infrastructure for everything from refineries to pressure valves, and are going to come into play more than ever before with renewable energy infrastructure too. They are also used as the foundation in water tower structures and as concrete-reinforcing bars for foundations in water gates, generators and turbines.
Ornamental/artistic pieces
Flat steel bars are so malleable and workable that they lend themselves to endless forms of art, decor and industrial art pieces. From sculptures to modern shelving units, well-chosen steel flat bars can be used in just about anything. Steel sections that go through additional manufacturing processes are given a smoother finish and outer layering, giving pieces of art a cleaner, sharper appearance as well as a more reflective surface. Stunning works of art can also be made from scrap steel bars.
What is your working time?
In general, our online service time is Beijing time: 8:00-22:00, after 22:00, we will reply to your inquiry during the next working day.
How to pack the products?
The inner layer has a waterproof paper outer layer with iron packaging and is fixed with a fumigation wooden pallet. It can effectively protect products from corrosion during ocean transportation.
Can you send samples?
Of course, we can send samples to all parts of the world, our samples are free, but customers need to bear the courier costs.
What product information do I need to provide?
You need to provide the grade, width, thickness, coating and the number of tons you need to purchase.
What are the shipping ports?
Under normal circumstances, we ship from Shanghai, Tianjin, Qingdao, Ningbo ports, you can choose other ports according to your needs.
About product prices?
Prices vary from period to period due to cyclical changes in the price of raw materials.
What are the certifications for your products?
We have ISO 9001, SGS, EWC and other certifications.
How long does your delivery time take?
In general, our delivery time is within 30-45 days, and may be delayed if the demand is extremely large or special circumstances occur.
