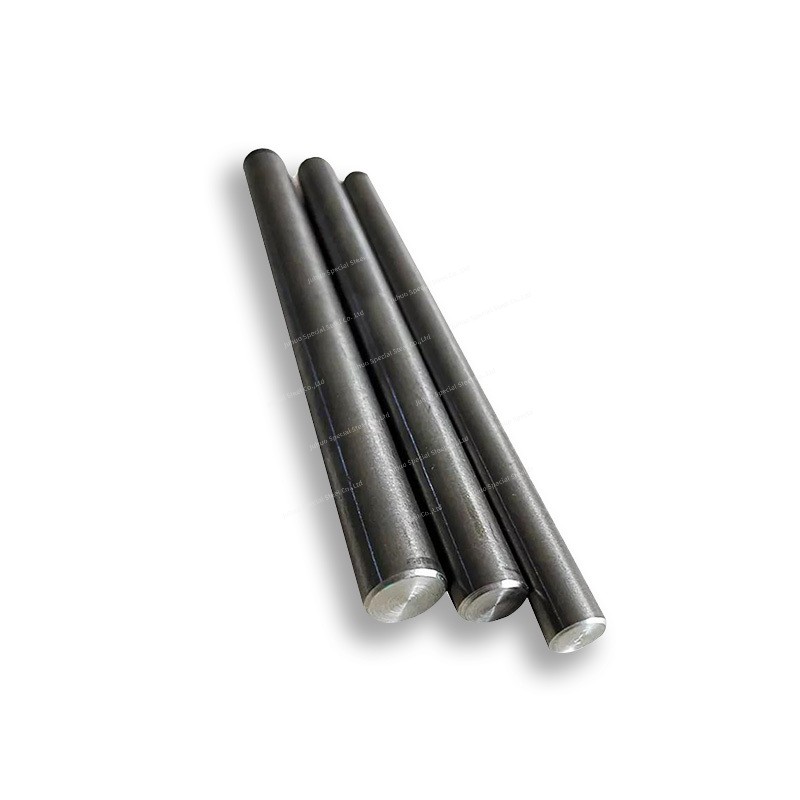

AISI/SAE 1045 C45 Round Steel Bar
1045 steel bar is made of a medium carbon, medium tensile strength steel, which has quite good strength, machinability and reasonable weldability under hot-rolled conditions. 1045 round steel can be provided with hot rolling, cold drawing, rough turning or turning and polishing.
Big fire special steel, high strength steel plate, steel industry supply and demand, steel suppliers
AISI/SAE 1045 C45 Round Steel Bar Description
AISI 1045 steel is characterized by good weldability, good machinability and high strength and impact properties in the normalized or hot-rolled condition. So AISI 1045 steel bar is a medium carbon steel designed to be able to function in areas requiring greater strength and hardness. This steel possesses excellent size accuracy, concentricity, and straightness which together minimize wear in high speed applications. AISI 1045 can be formed into turned, ground and polished bars that can be machined unsymmetrically with limited distortion. They are often used in the production of gears, shafts, axles, bolts, studs and machine parts.
Product Parameters
Product Name | AISI/SAE 1045 C45 Round Steel Bar | |||
Standard | EN/DIN/JIS/ASTM/BS/ASME/AISI, etc. | |||
Common Round Bar Specifications | 3.0-50.8 mm, Over 50.8-300mm | |||
Flat Steel Common Specifications | 6.35x12.7mm, 6.35x25.4mm, 12.7x25.4mm | |||
Hexagon Bar Common Specifications | AF5.8mm-17mm | |||
Square Bar Common Specifications | AF2mm-14mm, AF6.35mm, 9.5mm, 12.7mm, 15.98mm, 19.0mm, 25.4mm | |||
Length | 1-6meters, Size Accept Custom | |||
Diameter(mm) | Hot Rolling Round Bar | 25-600 | Cold Rolling Square Bar | 6-50.8 |
Hot Rolling Square Bar | 21-54 | Cold Rolling Hexagon Bar | 9.5-65 | |
Cold Rolling Round bar | 6-101.6 | Forged Rebar | 200-1000 | |
Surface Process | Bright, Polished, Black | |||
Other Services | Machining(cnc), Centerless Grinding(cg), Heat Treatment, Annealing, Pickling, Polishing, Rolling, Forging, Cutting, Bending, Small Machining, etc. | |||
Chemical Composition
Grade | Mn | S | C | P | Si | Cr | Ni |
AISI 1045 | 0.5-0.8 | 0.035 | 0.5-0.42 | 0.035 | 0.17-0.37 | 0.25 | 0.3 |
Mechanical Properties
Grade | Tensile Strength (Ksi) min | Elongation (%in 50 mm) min | Yield Strength 0.2% Proof (ksi) min | Hardness |
AISI 1045 | 600 | 40 | 355 | 229 |
Scope of Application
1045 steel is widely used in machining, automobile manufacturing, aerospace and other fields.
