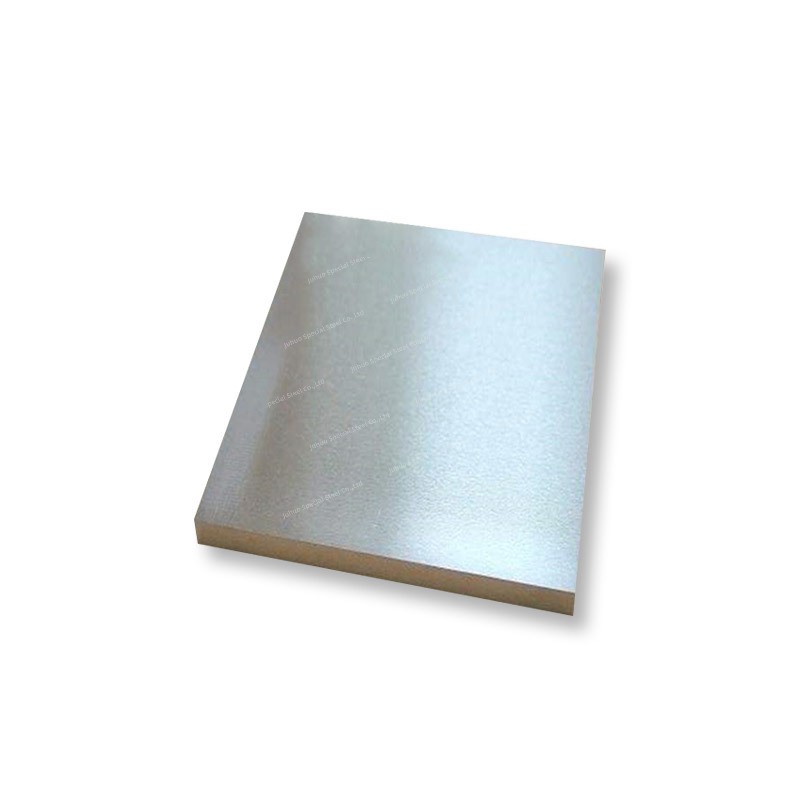

Titanium Grade 9 Plate
Grade 9 titanium plate, also known as Ti-3Al-2.5V, is an alpha-beta titanium alloy consisting of 3% aluminum and 2.5% vanadium. This titanium alloy has some properties that make it suitable for a variety of applications, and it also has properties when it comes to forging.
Big fire special steel, high strength steel plate, steel industry supply and demand, steel suppliers
Titanium Grade 9 Plate Description
Grade 9 titanium plate has good strength and toughness, can maintain stable performance under high temperature and high pressure conditions, and is suitable for aerospace and aerospace engines and other fields. Besides, Grade 9 titanium plate has good corrosion resistance and can resist the erosion of corrosive media such as sea water and salt water, so it is widely used in marine engineering and chemical equipment. For another, Grade 9 titanium alloy has good weldability and is suitable for conventional welding, arc welding, laser welding and other processes, giving it high plasticity and processability during the manufacturing process. Lastly, Grade 9 titanium has a lower density and is lighter than many other metals, giving it an advantage in parts requiring lightweight designs. Grade 9 titanium plate is widely used in aerospace, marine engineering, chemical equipment and other fields.
Product Parameters
Product Name | Titanium Grade 9 Plate |
Thickness | 0.3mm-200mm |
Length | 2000mm, 2438mm, 3000mm, 5800mm, 6000mm, 12000mm, etc. |
Width | 40mm-600mm, 1000mm, 1219mm, 1500mm, 1800mm, 2000mm, 2500mm, 3000mm, 3500mm, etc. |
Standard | ASTM, AISI, JIS, GB, DIN, EN, etc. |
Surface | BA, 2B, NO.1, NO.4, 4K, HL, 8K, etc. |
Certificate | ISO, SGS, BV |
Production Technology | Hot Rolling, Cold Rolling |
Chemical Composition & Mechanical Properties
STM/ASME | GB | JIS | Element Content（wt%） | Mechanical Properties | |||||||
N,max | C,max | H,max | Fe,max | O,max | Others | Strength Of Extension | Ductility | ||||
Mpa,min | %，min | ||||||||||
Pure Titanium | Gr.1 | TA1 | Class1 | 0.03 | 0.08 | 0.015 | 0.2 | 0.18 | - | 240 | 24 |
Gr.2 | TA2 | Class2 | 0.03 | 0.08 | 0.015 | 0.3 | 0.25 | 345 | 20 | ||
Gr.3 | TA3 | Class3 | 0.05 | 0.08 | 0.015 | 0.3 | 0.35 | 450 | 18 | ||
Gr.4 | TA4 | Class4 | 0.05 | 0.08 | 0.015 | 0.5 | 0.4 | 550 | 15 | ||
Titanium Alloy | Gr.5 | TC4 | Class60 | 0.05 | 0.08 | 0.015 | 0.4 | 0.2 | AI:5.5-6.75. | 895 | 10 |
Ti-6A1-4V | V:3.5-4.5 | ||||||||||
Gr.7 | TA9 | Class12 | 0.03 | 0.08 | 0.015 | 0.3 | 0.25 | Pd:0.12-0.25 | 345 | 20 | |
Gr.9 | TC2 | Class61 | 0.03 | 0.08 | 0.015 | 0.25 | 0.15 | AI:2.5-3.5 | 620 | 15 | |
V:2.0-3.0 | |||||||||||
Gr.11 | TA9-1 | Class11 | 0.03 | 0.08 | 0.015 | 0.2 | 0.18 | Pd:0.12-0.25 | 240 | 24 | |
Gr.23 | TC4 ELI | Class60E | 0.03 | 0.08 | 0.0125 | 0.25 | 0.13 | AI:5.5-6.5 | 828 | 10 | |
V:3.5-4.5 | |||||||||||
Scope of Application
Used in aircraft turbines, engine components, aircraft structural components, aerospace fasteners, high-performance automation parts, marine applications, sports equipment, etc.
