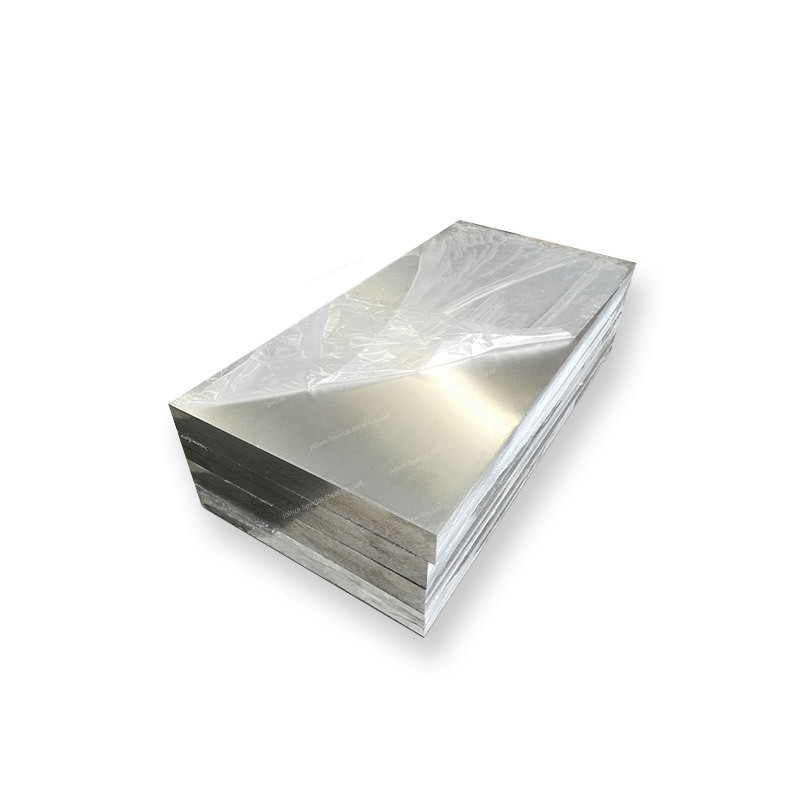

Inconel 601 Plate
Inconel 601 plate is made of a high-strength, corrosion-resistant nickel-based alloy that is widely used in various high-temperature equipment. As a material with good mechanical properties and corrosion resistance, Inconel 601 is widely used in aviation, chemical industry, marine engineering and other fields.
Big fire special steel, high strength steel plate, steel industry supply and demand, steel suppliers
Inconel 601 Plate Description
Inconel 601 is a nickel-based high-temperature alloy whose main components are nickel, chromium, aluminum and iron. Among them, nickel accounts for the majority, with a content generally above 58%, while chromium and aluminum account for about 19% and 1.0% respectively. In addition, it also contains small amounts of elements such as copper and manganese, which can enhance the strength and corrosion resistance of the material. Inconel 601 plate has excellent high temperature strength, corrosion resistance and oxidation resistance. At high temperatures, its strength and hardness can be maintained at a high level, while having good plasticity and toughness. In an acidic environment, Inconel 601 plate exhibits good corrosion resistance and can effectively resist erosion by corrosive media such as chloride ions and sulfides.
Product Parameters
Product Name | Inconel 601 Plate |
Thickness | 0.3mm-200mm |
Length | 2000mm, 2438mm, 3000mm, 5800mm, 6000mm, 12000mm, etc. |
Width | 40mm-600mm, 1000mm, 1219mm, 1500mm, 1800mm, 2000mm, 2500mm, 3000mm, 3500mm, etc. |
Standard | ASTM, AISI, JIS, GB, DIN, EN, etc. |
Surface | BA, 2B, NO.1, NO.4, 4K, HL, 8K, etc. |
Certificate | ISO, SGS, BV |
Production Technology | Hot Rolling, Cold Rolling |
Chemical Composition
C | Al | Si | S | Cr | Mn | Fe | Ni | Cu |
0.1 max | 1.0-1.7 | 0.5 max | 0.015 max | 21.0-25.0 | 1.0 max | Remainder | 58.0-63.0 | 1.0 max |
Mechanical Properties
Tensile Strength (ksi) | 0.2% Yield Strength (ksi) | Elongation% in 2 inches |
80 | 30 | 30 |
Physical Performance
Units | Temperature in°C | |
Density | 8.11 g/cm³ | Room |
Specific Heat | 0.107 Kcal/kg.C | 20° |
Melting Range | 1360-1411°C | - |
Modulus of Elasticity | 206.5 KN/mm² | 20° |
Electrical Resistivity | 118 µΩ.cm | 20° |
Coefficient of Expansion | 13.75 µm/m °C | 20 - 100° |
Thermal Conductivity | 11.2 w/m-° K | 20° |
Scope of Application
The 601 characteristics of Inconel make it widely used in the fields of heat treatment, chemical treatment, pollution control, aerospace and power generation. Therefore, it is not recommended to use the alloy 601 in a strongly reduced sulfur-containing environment.
