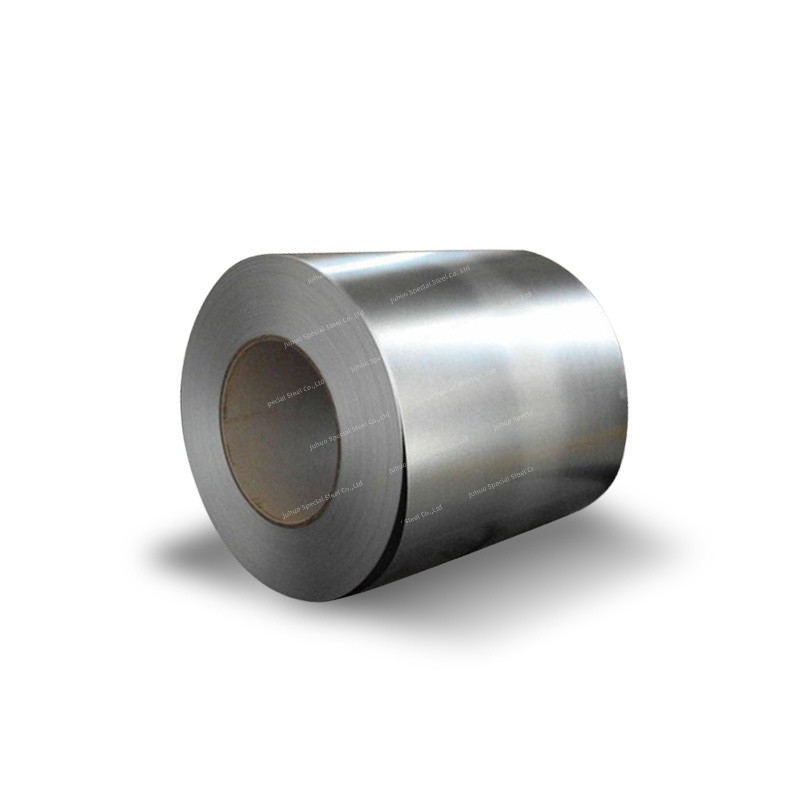

Inconel 601 Coil

Inconel 601 Coil

Inconel 601 coil is made of a high-strength, corrosion-resistant nickel-based alloy that is widely used in various high-temperature equipment. As a material with good mechanical properties and corrosion resistance, Inconel 601 is widely used in aviation, chemical industry, marine engineering and other fields.

Big fire special steel, high strength steel plate, steel industry supply and demand, steel suppliers

Inconel 601 Coil Description

Inconel  601 is a nickel-based high-temperature alloy whose main components are  nickel, chromium, aluminum and iron. Among them, nickel accounts for the  majority, with a content generally above 58%, while chromium and  aluminum account for about 19% and 1.0% respectively. In addition, it  also contains small amounts of elements such as copper and manganese,  which can enhance the strength and corrosion resistance of the material. Inconel  601 coil has excellent high temperature strength, corrosion resistance  and oxidation resistance. At high temperatures, its strength and  hardness can be maintained at a high level, while having good plasticity  and toughness. In an acidic environment, Inconel 601 coil exhibits good  corrosion resistance and can effectively resist erosion by corrosive  media such as chloride ions and sulfides.



Product Parameters

Product Name

Inconel 601 Coil

Thickness

2.5mm-10.0 mm

Length

2000mm, 2440mm, 3000mm, 5800mm, 6000mm, etc.

Width

610-2000 mm

Standard

ASTM, AISI, JIS, GB, DIN, EN, etc.

Surface

BA, 2B, NO.1, NO.4, 4K, HL, 8K, etc.

Certificate

ISO, SGS, BV

Production Technology

Hot Rolling, Cold Rolling



Chemical Composition

C

Al

Si

S

Cr

Mn

Fe

Ni

Cu

0.1 max

1.0-1.7

0.5 max

0.015 max

21.0-25.0

1.0 max

Remainder

58.0-63.0

1.0 max



Mechanical Properties

Tensile Strength (ksi)

0.2% Yield Strength (ksi)

Elongation% in 2 inches

80

30

30



Physical Performance


Units

Temperature in°C

Density

8.11 g/cm³

Room

Specific Heat

0.107 Kcal/kg.C

20°

Melting Range

1360-1411°C

-

Modulus of Elasticity

206.5 KN/mm²

20°

Electrical Resistivity

118 µΩ.cm

20°

Coefficient of Expansion

13.75 µm/m °C

20 - 100°

Thermal Conductivity

11.2 w/m-° K

20°



Scope of Application

The  601 characteristics of Inconel make it widely used in the fields of  heat treatment, chemical treatment, pollution control, aerospace and  power generation. Therefore, it is not recommended to use the alloy 601  in a strongly reduced sulfur-containing environment.
