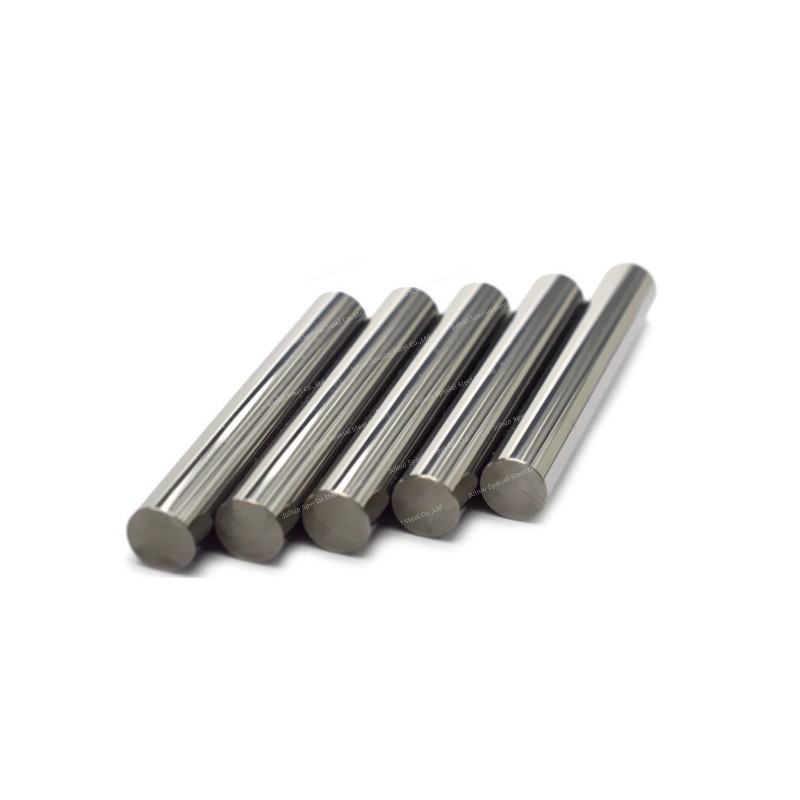

Monel 400 Bar
Monel 400, also known as UNS N04400 or German grade 2.4360, is a high-performance alloy whose chemical composition and excellent mechanical properties enable it to perform well in various harsh environments. Whether in the marine engineering or chemical industries, Monel 400 bar plays an indispensable role, providing reliable protection and support for various equipment and components.
Big fire special steel, high strength steel plate, steel industry supply and demand, steel suppliers
Monel 400 Bar Description
Monel 400 is a corrosion-resistant alloy with the largest dosage, the most wide range of uses, and excellent comprehensive properties. This alloy has excellent corrosion resistance in hydrofluoric acid and fluorine gas media, as well as excellent corrosion resistance against hot concentrated alkali liquid. It is also resistant to corrosion from neutral solutions, water, seawater, atmosphere, organic compounds, etc. An important feature of this alloy is that it generally does not produce stress corrosion cracking aside from good cutting performance. Monel 400 bars are commonly adopted in many corrosive applications, particularly in the marine and chemical industries. Monel 400 can be easily machined through conventional machining operations as a relatively soft material suitable for thermoforming into almost any shape.
Product Parameters
Product Name | Monel 400 Bar | |
Outer Diameter | Round Bar | 4mm-500mm |
Hexagon Bar | 18mm-57mm (11/16″ to 2-3/4″) | |
Square Bar | 18mm-47mm (11/16″ to 1-3/4″) | |
Flat Steel | 1/2 "to 10", Thickness: 2mm-150mm, Can provide customized | |
Length | 1-6 meters, Length can be customized | |
Standard | ASTM, AISI, JIS, GB, DIN, EN, etc. | |
Surface | Black, Bright Polished, Rough Turning, Matt Surface Treatment, NO.4, BA, etc. | |
Certificate | ISO, SGS, BV | |
Production Technology | Hot Rolling, Cold Rolling | |
Chemical Composition
| Nickel, minA | Copper | lron, max | Manganese, max | Carbon, max | Silicon, max | Sulfur, max |
| 63.0% | 28.0% - 34.0% | 2.5% | 2.0% | 0.3% | 0.5% | 0.024% |
Mechanical Properties
Tensile Strength (ksi) | 0.2% Yield Strength (ksi) | Elongation% in 2 inches |
85 | 35 | 30 |
Physical Performance
Units | Temperature in°C | |
Density | 8.14 g/cm³ | Room |
Specific Heat | 0.105 Kcal/kg.C | Room |
Melting Range | 1370-1400°C | - |
Modulus of Elasticity | 196 KN/mm² | 20° |
Electrical Resistivity | 113 µΩ.cm | 25° |
Coefficient of Expansion | 14.1 µm/m °C | 25 - 100° |
Thermal Conductivity | 11.1 w/m-° K | 25° |
Scope of Application
Used in marine engineering, chemical and hydrocarbon processing equipment, gasoline tanks and fresh water tanks, crude oil distillers, degassing heaters, boiler feed water heaters and other heat exchangers, valves, pumps, shafts, accessories and fasteners, Industrial heat exchangers, chlorinated solvents, crude oil distillation columns, etc.
