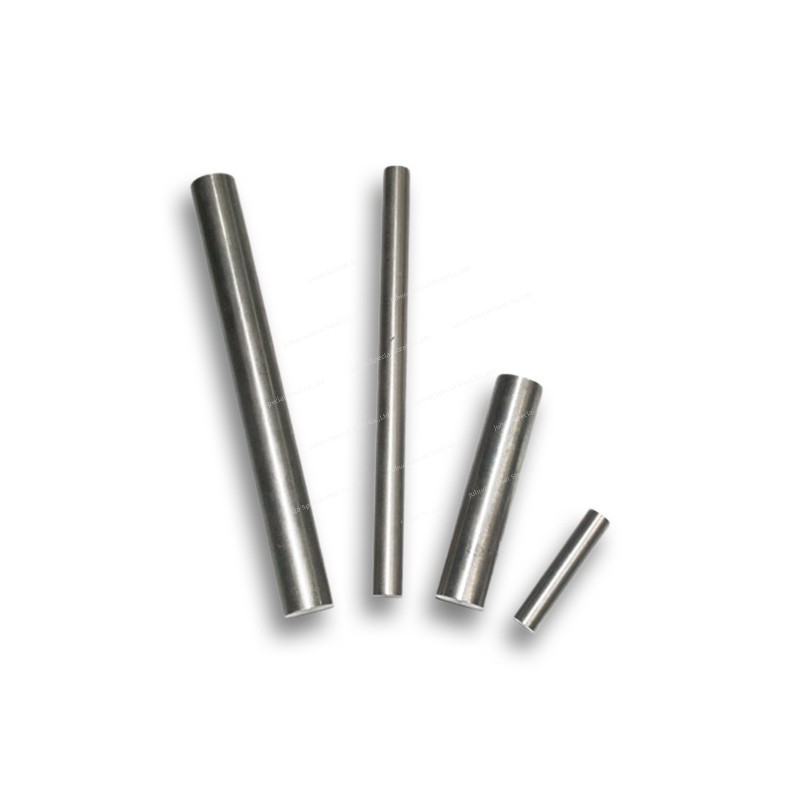

Incoloy 800 Bar
Incoloy 800 bar is made of a nickel-chromium-iron alloy of remarkable corrosion resistance and high-temperature strength. This alloy features good oxidation resistance in high-temperature environments and good toughness in low-temperature environments. Therefore, it is commonly seen in various industrial fields, including chemical processing, oil and gas, power and automobile manufacturing, etc.
Big fire special steel, high strength steel plate, steel industry supply and demand, steel suppliers
Incoloy 800 Bar Description
The chemical composition of Incoloy 800 alloy consists mainly of nickel, chromium and iron. Nickel is the main element that leads to improved corrosion resistance of the alloy, chromium helps enhance the oxidation resistance and high-temperature strength of the alloy, and iron forms the matrix structure of the alloy. In addition, the alloy also integrates certain amounts of elements such as carbon, silicon and manganese to further enhance its overall performance. Incoloy 800 bar is highly resistant to corrosion from reducing and oxidizing media. It also has good resistance to chemicals such as sulfuric acid, hydrochloric acid and alkaline solutions in high temperature environments. Incoloy 800 bar comes with good oxidation resistance in high temperature environments and can work at temperatures up to 1100°C for a long time. Lastly, Incoloy 800 bar can maintain its mechanical properties in high and low temperature environments, with high yield strength and creep strength.
Product Parameters
Product Name | Incoloy 800 Bar | |
Outer Diameter | Round Bar | 4mm-500mm |
Hexagon Bar | 18mm-57mm (11/16″ to 2-3/4″) | |
Square Bar | 18mm-47mm (11/16″ to 1-3/4″) | |
Flat Steel | 1/2 "to 10", Thickness: 2mm-150mm, Can provide customized | |
Length | 1-6 meters, Length can be customized | |
Standard | ASTM, AISI, JIS, GB, DIN, EN, etc. | |
Surface | Black, Bright Polished, Rough Turning, Matt Surface Treatment, NO.4, BA, etc. | |
Certificate | ISO, SGS, BV | |
Production Technology | Hot Rolling, Cold Rolling | |
Chemical Composition
C | Al | Si | S | Ti | Cr | Mn | Fe | Ni | Cu |
0.1 max | 0.15 - 0.60 | 1.0 max | 0.015 max | 0.15 - 0.60 | 19.0 - 23.0 | 1.5 max | 39.5 min | 30.0 - 35.0 | 0.75 max |
Mechanical Properties
Tensile Strength (ksi) | 0.2% Yield Strength (ksi) | Elongation% in 2 inches |
75 | 30 | 30 |
Physical Performance
Units | Temperature in°C | |
Density | 7.94 g/cm³ | Room |
Specific Heat | 0.11 Kcal/kg.C | 21° |
Melting Range | 1357-1385°C | - |
Modulus of Elasticity | 196.5 KN/mm² | 20° |
Electrical Resistivity | 98.9 µΩ.cm | 20° |
Coefficient of Expansion | 14.4 µm/m °C | 20 - 100° |
Thermal Conductivity | 11.5 w/m-° K | 20° |
Scope of Application
The most common applications are heat treatment equipment, petrochemical pyrolysis piping systems, electric heating unit jackets and food processing equipment.
